Heat & Sound Resistance Construction

Heat Resistance (Thermal Insulation)

The goal is to slow down the transfer of heat, keeping interiors warm in winter and cool in summer.

Key Principles:

Conduction: Heat transfer through solid materials. Insulation aims to be a poor conductor.

Convection: Heat transfer through air movement. Insulation traps air to minimize this.

Radiation: Heat transfer via electromagnetic waves (e.g., heat from the sun). Reflective surfaces and special coatings combat this.

Materials and Methods for Construction:

Bulk Insulation (Resists Conduction & Convection):

How it works: Uses millions of tiny air pockets trapped within a material to slow down heat flow.

Materials:

Fiberglass: Batts or rolls. Cost-effective and common.

Mineral Wool (Rock/Slag Wool): Batts or boards. Excellent for both heat and sound; also fire-resistant.

Cellulose: Loose-fill or damp-sprayed. Made from recycled paper, treated for fire resistance.

Spray Polyurethane Foam (SPF): Expands to fill cavities, creating an excellent air barrier and high R-value per inch.

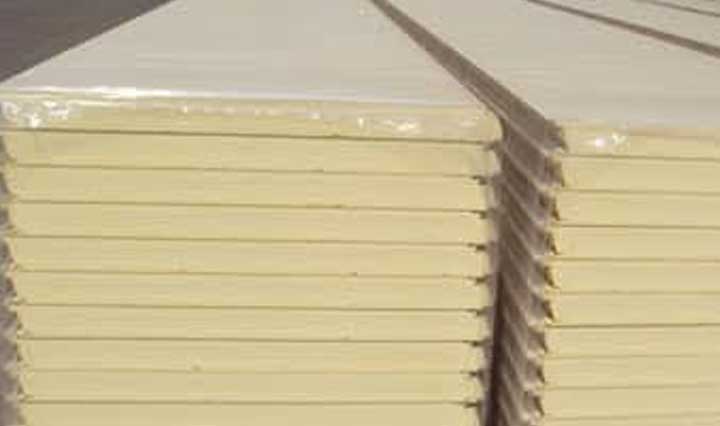

Rigid Foam Boards: XPS (Extruded Polystyrene), EPS (Expanded Polystyrene), Polyiso (Polyisocyanurate). Used on exterior walls (exterior insulation finishing system - EIFS), roofs, and foundations.

Reflective Insulation (Resists Radiation):

How it works: Uses a reflective surface (like aluminum foil) to reflect radiant heat away from the building.

Application: Often found in roof spaces to reflect solar radiation. Most effective when facing an air gap.

Advanced Systems:

Structural Insulated Panels (SIPs): A composite panel with an insulating foam core (EPS or Polyiso) sandwiched between two structural skins (OSB, steel). Provides structure and high insulation in one step.

Insulated Concrete Forms (ICFs): Hollow foam blocks that are stacked, filled with rebar, and concrete. The foam stays in place as permanent, high-performance insulation.

Key Concept in Thermal Design:

Thermal Bridging: When a more conductive material (like a steel stud or concrete slab) bypasses the insulation, creating a "short-circuit" for heat flow.

Solution: Continuous Insulation (ci) is installed over the structural frame, breaking the thermal bridge. This is a fundamental principle in modern energy codes.

Common Application

Sound Resistance (Acoustic Insulation)

The goal is to control both the transmission of sound from one space to another and the reverberation within a space.

Key Principles:

Airborne Sound: Sound traveling through the air (e.g., speech, TV noise). Stopped by mass and airtight seals.

Impact Sound: Sound from physical impacts on the structure (e.g., footsteps, dragging furniture). Stopped by decoupling and resilient materials.

Sound Absorption: The ability of a material to absorb sound energy within a room, reducing echo and reverberation.

Materials and Methods for Construction:

Mass-Loaded Vinyl (MLV):

A flexible, dense sheeting made from vinyl and barium sulfate. It adds significant mass to walls, floors, and ceilings without adding much thickness, effectively blocking airborne sound.

Acoustic Batts (Soundproofing Insulation):

Similar to thermal insulation but often denser (e.g., specialized mineral wool or fiberglass). It is non-structural and works by damping vibrations and absorbing sound waves within the wall cavity.

Decoupling/Resilient Channels:

This is one of the most effective techniques. It involves physically separating one side of a wall or ceiling from the other to break the path of vibration.

Methods:

Staggered Stud Walls: Studs are staggered on a single wide plate so that drywall on one side is not attached to the studs connecting to the other side.

Resilient Channel: Thin, flexible metal channels attached to studs or joists. The drywall is then screwed to the channel, not directly to the stud, creating a "spring" that isolates vibration.

Sound Isolation Clips: Specialized clips that provide even better decoupling than resilient channels.

Acoustic Sealants:

Sound travels through the tiniest gaps. Special non-hardening, flexible sealants are used to seal all perimeter gaps, around outlets, and any penetration to create an airtight barrier.

Sound-Absorbing Materials (for within a room):

Acoustic Panels & Baffles: Fabric-wrapped panels containing mineral wool or fiberglass, mounted on walls or ceilings.

Acoustic Ceiling Tiles: Perforated tiles with sound-absorbing backing.

Carpet & Padding: Excellent for reducing impact noise on floors.
